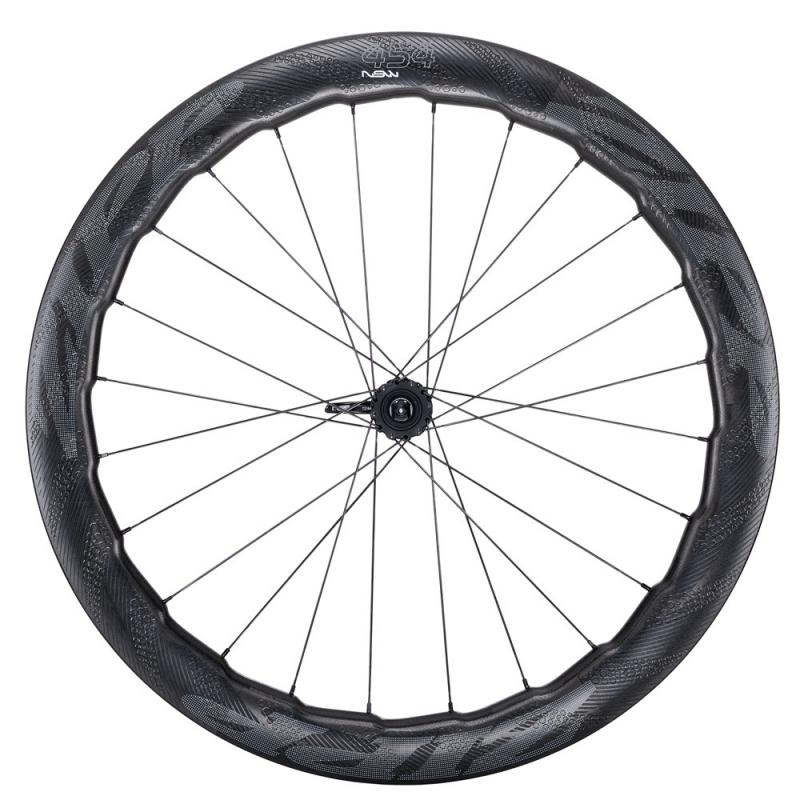

Zipp engineers have optimized the biomimicry-derived 454 NSW for the ultimate in all conditions braking control—disc brakes. This marks the first NSW wheelset available for disc brakes, offering cyclists the greatest AeroBalance with the superior modulation and stopping power of disc brakes.
Zipp engineers studied the environment around them for instances of how nature solved similar problems of speed, control, and efficiency for the next generation of Zipp wheels. Think of a humpback whale’s fast but graceful movements thanks to the special features on the leading edge of its pectoral fins, or the unique micro texture of a shark’s skin, which gives it the ability to glide effortlessly through the water.
These structures inspired Zipp advanced development engineers to systematically apply biomimicry to solve the complex challenge of designing a wheel that reduces both aerodynamic drag and side force.
Using nature as a roadmap, Zipp began the rigorous aero development process of the 454 NSW Disc-brake utilizing the wind tunnel, CFD, and real-world testing. The result is an undulating 53/58mm-deep rim shape that takes nature’s most elegant design solutions and combines engineering precision to deliver a wheel that performs unlike any made before.
The most visually striking and functionally important biomimicry-derived innovation in the handcrafted 454 NSW Disc-brake is Sawtooth™.
This patented rim shape achieves something conventional aero wheels cannot; it simultaneously reduces both aerodynamic drag and side force for the ultimate in AeroBalance. Sawtooth™ accomplishes this with a series of patented fin-shaped Hyperfoil™ nodes along the inner diameter of the rim that work together with our HexFin™ ABLC dimples for improved airflow.
CFD Comparison
Without the need for a brake track on the 454 NSW Disc-brake we were able to extend the HexFin ABLC dimples from the rim’s Hyperfoil nodes all the way to the outer edge of the rim.
This design reduces aerodynamic drag while simultaneously improving crosswind control through higher frequency wind vortex shedding. By generating a greater number of smaller, less powerful, yet more predictable vortices Zipp has engineered a wheel with superior stability. To visually complement the rim’s aerodynamic structure without interfering with its function, our Impress™ printed graphics are applied from edge to edge.
The result is Zipp’s highest performing disc-brake wheelset ever realized with both aero-drag reduction and reduced side force at all wind yaw angles. This is important because higher wind yaw angles are where bike handling is most affected by the wind.
This added stability translates into greater rider control, thereby saving energy that is typically expended trying to hold a line in gusting wind. The result is a faster, more confident riding experience whether you are laying down power or descending sinuous mountain roads.
BEYOND THE RIM
Our NSW-exclusive Cognition™ Disc-brake hubset rolls efficiently whether you are pedaling or coasting. Our Axial Clutch™ technology allows the freehub’s ratcheting mechanism to deliver half the mechanical drag of conventional three pawl hubs. Assembled with Swiss bearings made to our exacting specifications, the Cognition™ hubset is as robust as it is fast. And to make installation and service as quick as this wheelset is on the road, we’ve designed the hubs to use a center locking disc brake interface and J-bend spokes.
Each Wheel Includes:
Zipp Tangente titanium black skewer
Zipp valve extender
Zipp individual wheel bag
Zipp Tangente tube 700c x 20-28mm
Zipp rim tape 700c x 20mm
Zipp thru-axle end caps to fit 12x100, 15x100, and 12x142 dropouts
SPECS:
Set Weight 1615g
Max recommended rider weight (lbs) 250lbs
Max recommended rider weight (kg) 115kg
Front Wheel
Weight 765g
Hub Used Cognition Disc front
Hub Width (OLD) 100mm
Rim Depth 53/58mm
Brake Track Width (center) 26.4mm
Max Width 27.72mm
Internal Width 17mm
Spokes Sapim CX Ray J-Bend
Spoke Count 24
Spoke Pattern 2 cross
Spoke Length DS 252
Spoke Length NDS 254
Max Tire Pressure 125psi
Max Tire Pressure 8.62 bars
10 or 11-speed Compatible Hub n/a
XDR Compatible n/a
Track Adaptable No
Dimpled Surface ABLC HexFin Technology
Nipples Sapim External aluminum Secure Lock
Thru Axle Compatible Yes
Tubeless No
Rear Wheel
Weight 850g
Hub Used Cognition Disc rear
Hub Width (OLD) 135 / 142mm
Rim Depth 53/58mm
Brake Track Width (center) 26.4mm
Max Width 27.72mm
Internal Width 17mm
Spokes Sapim CX Ray J-Bend
Spoke Count 24
Spoke Pattern 2 cross
Spoke Length DS 248
Spoke Length NDS 254
Max Tire Pressure 125psi
Max Tire Pressure 8.62 bars
10 or 11-speed Compatible Hub Yes
XDR Compatible Yes
Track Adaptable No
Dimpled Surface ABLC HexFin Technology
Nipples Sapim External aluminum Secure Lock
Thru Axle Compatible Yes
Tubeless No
